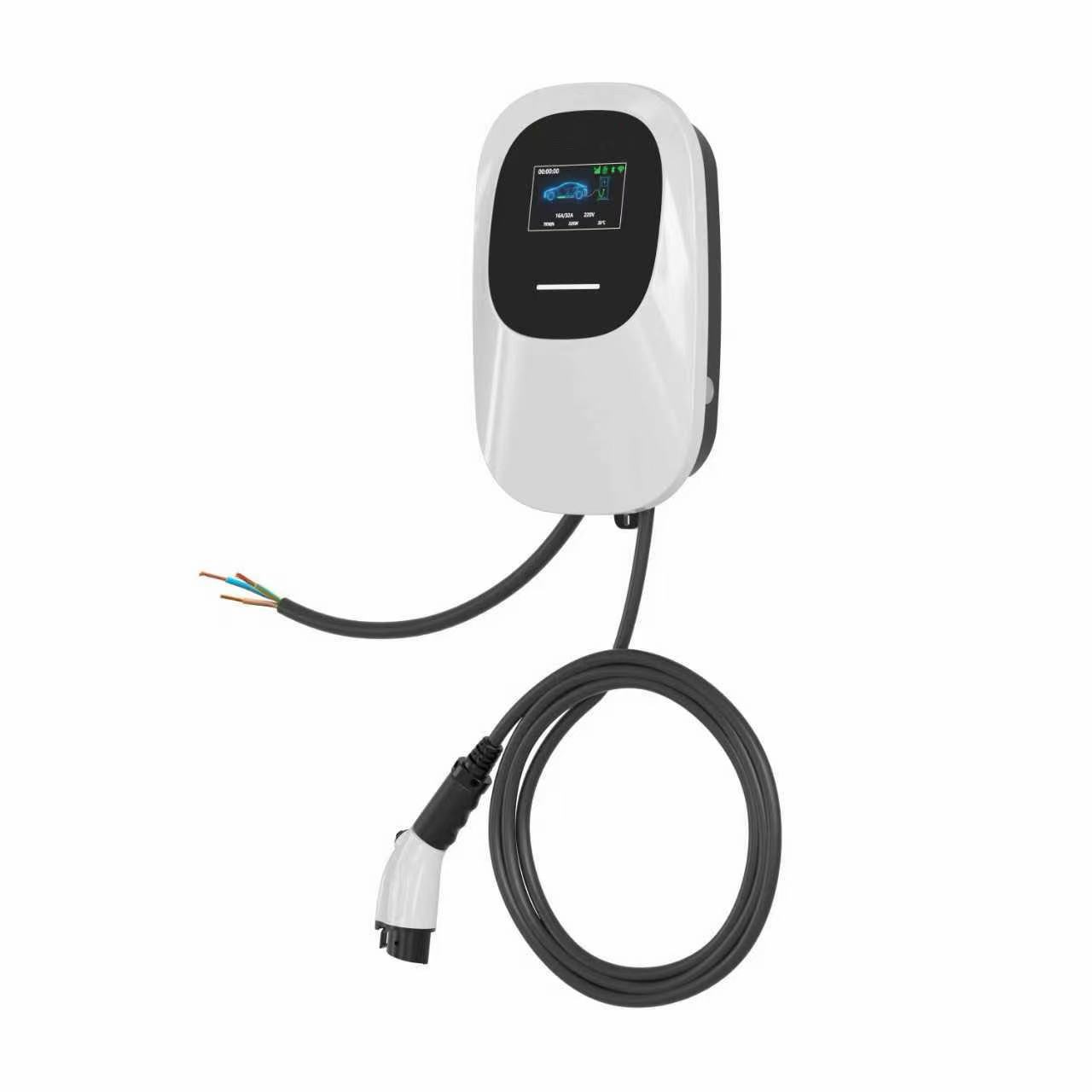

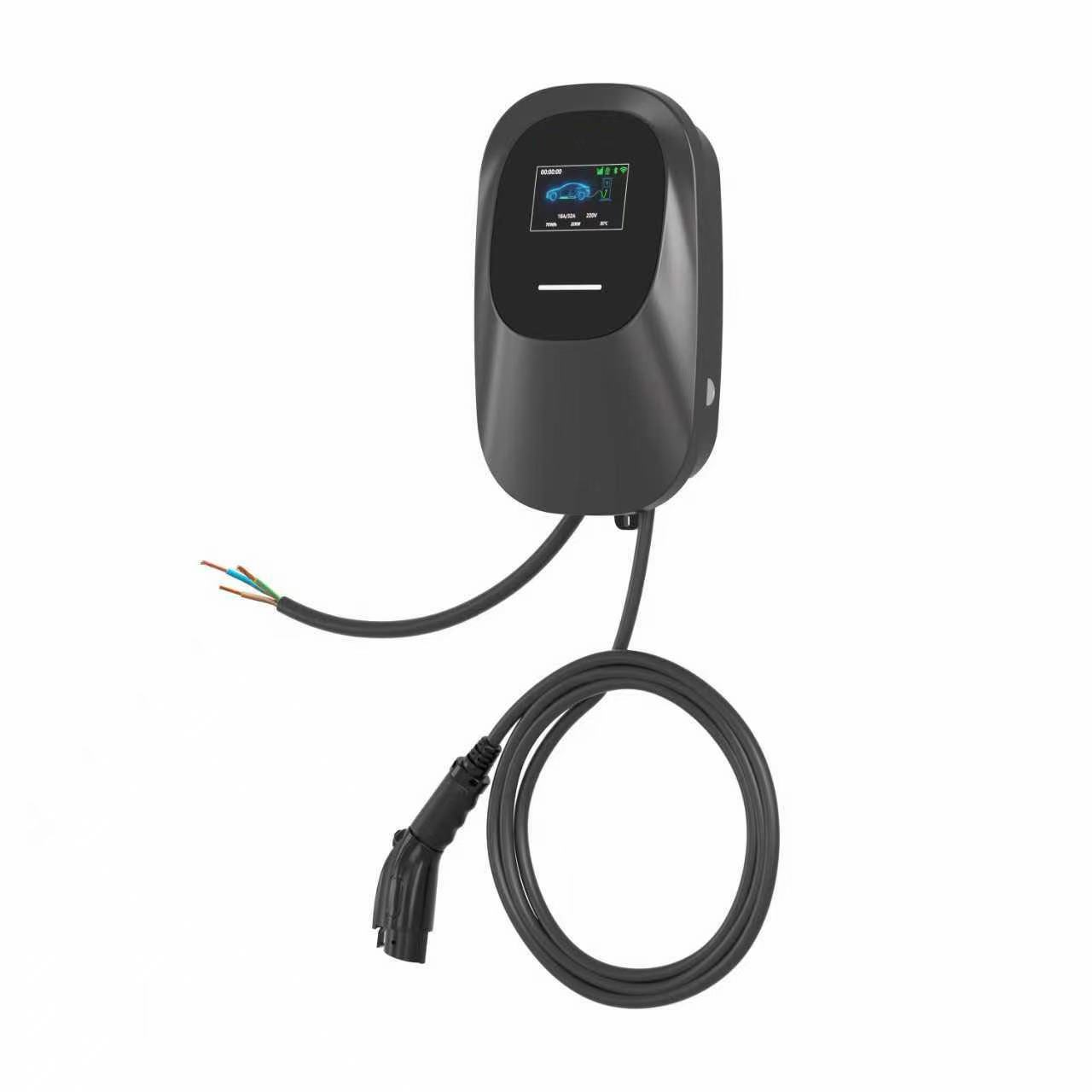

Type2 Wall Mounted EV Charger -AC 7kW with CE,RoHS and TUV

$195.00
277 Views
This type AC EV charger could be used in the family and residential scenario, with all the necessary certificate including CE,RoHS and TUV.
Get a Quote
Category :
Description
Technical Parameter
ModelS02EU7K
Current32A 1Phase
Operation VoltageAC 220-250V
Rated Power7KW
Cable specification3*6mm²+1*0.5mm²
TPU OD:13.5
User InterfaceLCD display(4.3 inch)+LED indicator
Start modePlug and play/NFC card/APP
Ground Fault Detection30mA for AC and 6mA for DC faults(Type A+6)
Charing connectorType 2 Plug+5M cable or custom cable length &color
Product DimensionEV plug:210*69*62 mm            Control box:220*130*385mm
Waterproof ProtectionCharging plug:IP65            Conrol box:IP65
StandardEN62196-2&1 EN50620 EN62752
Environmental Temperature-35℃ to 55℃
Case materialThermoplastic ABS+PC(Sabic brand)(flame retardant grade UL94-0)
Product PerformanceOver voltage protection.Under voltage protection.Over load protection.Leakage Protection.Ground protection,
Over temperature protection(85°℃).Lightning protection.Short circuit protection.flame retardant.Surge protection
CertificationCE RoHS TUV
