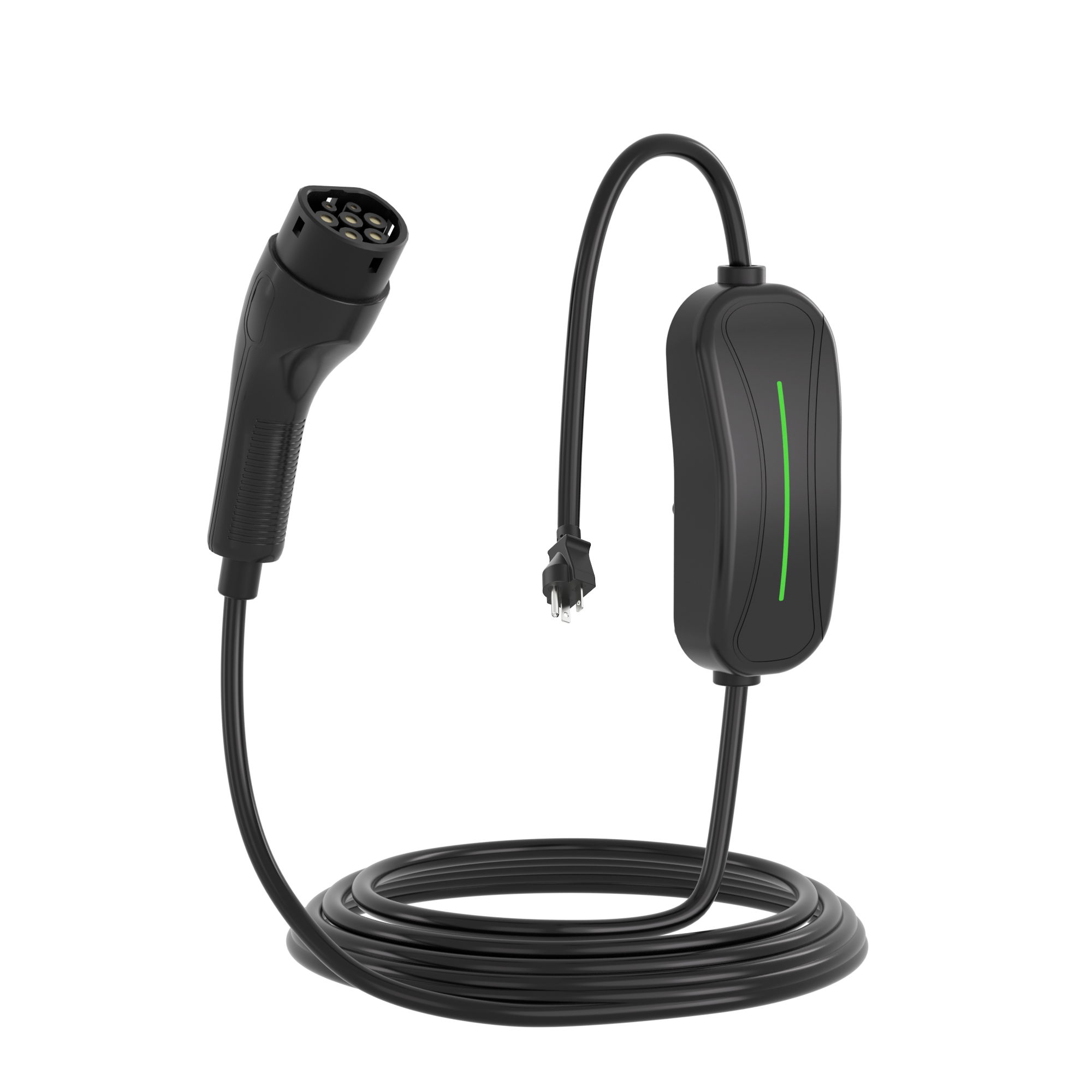

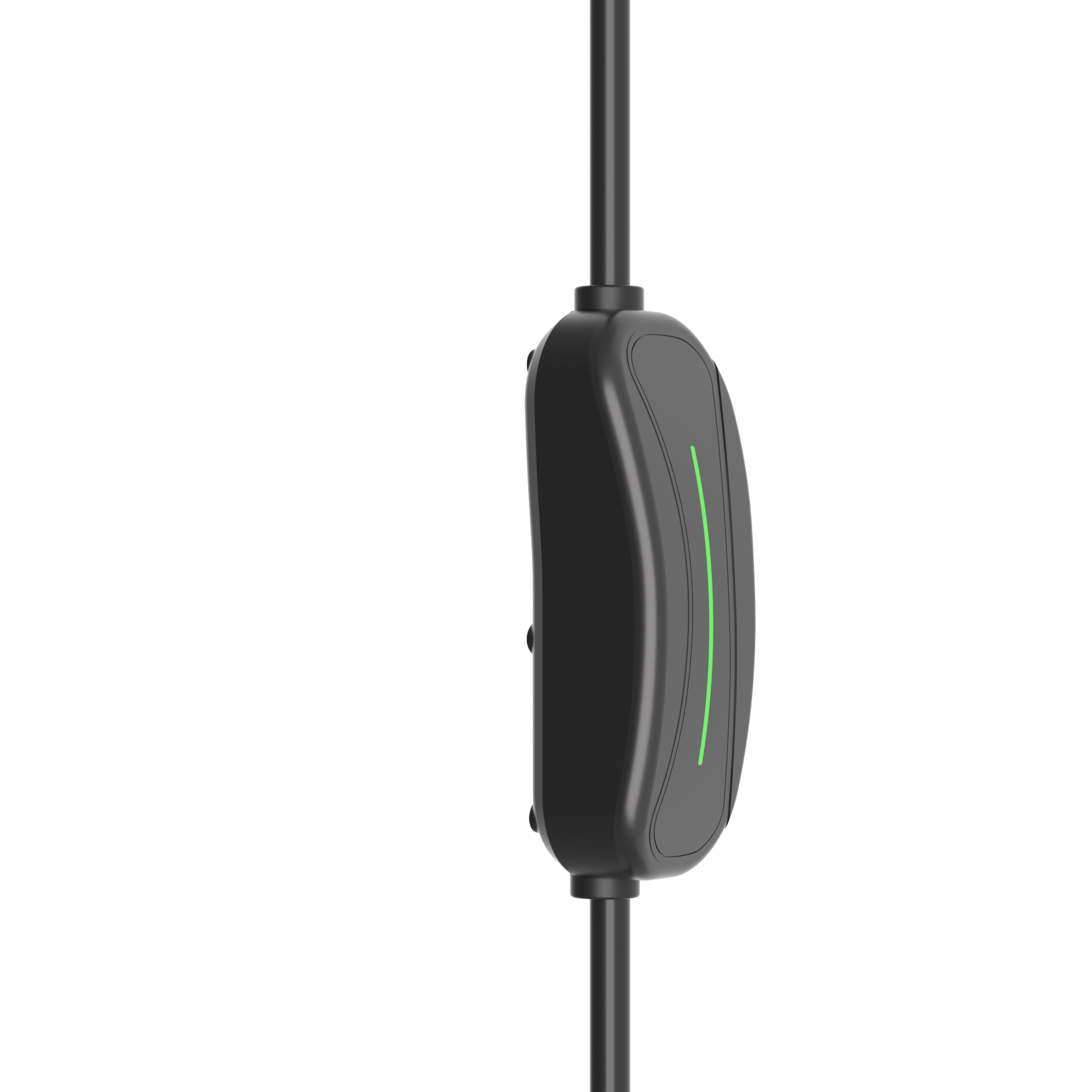

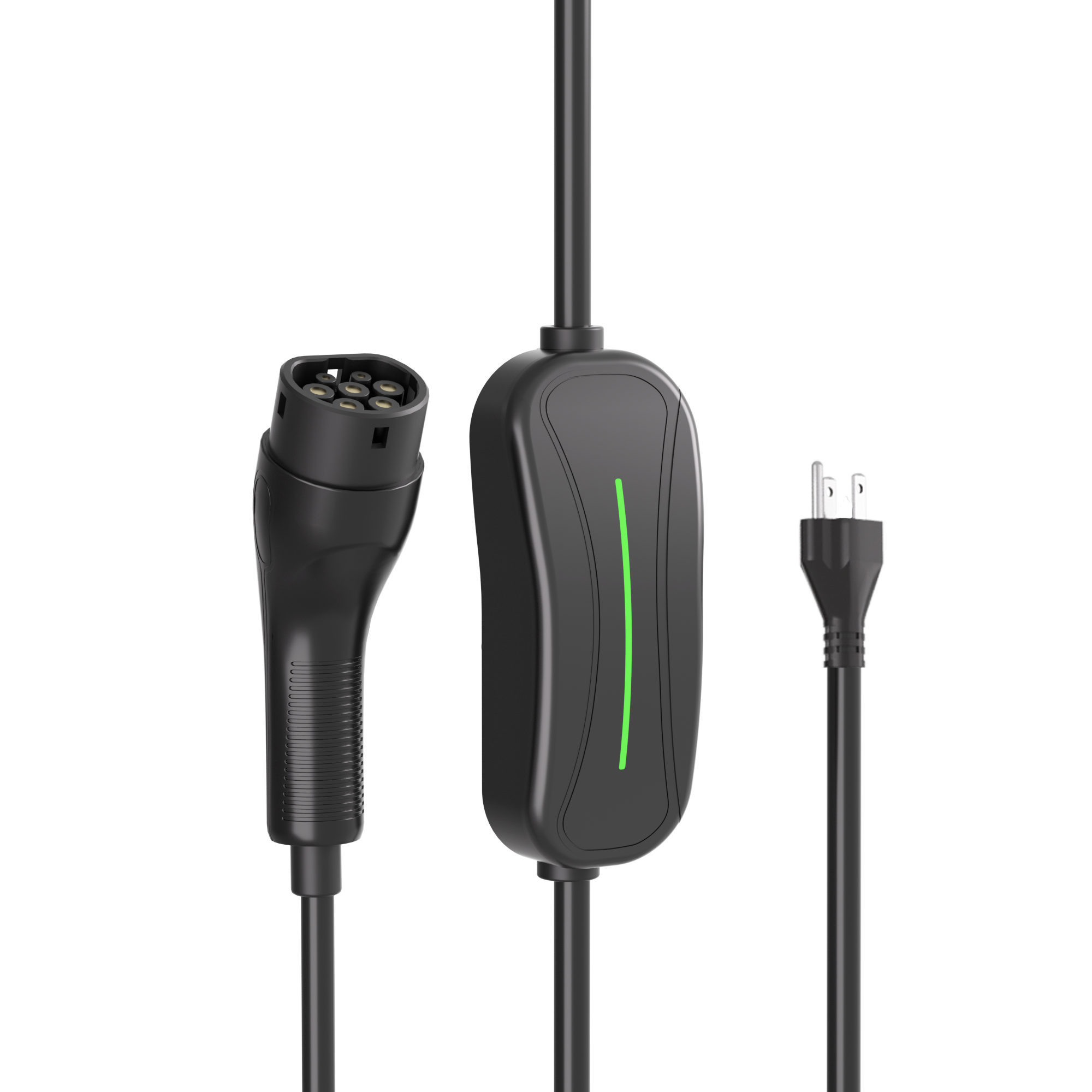

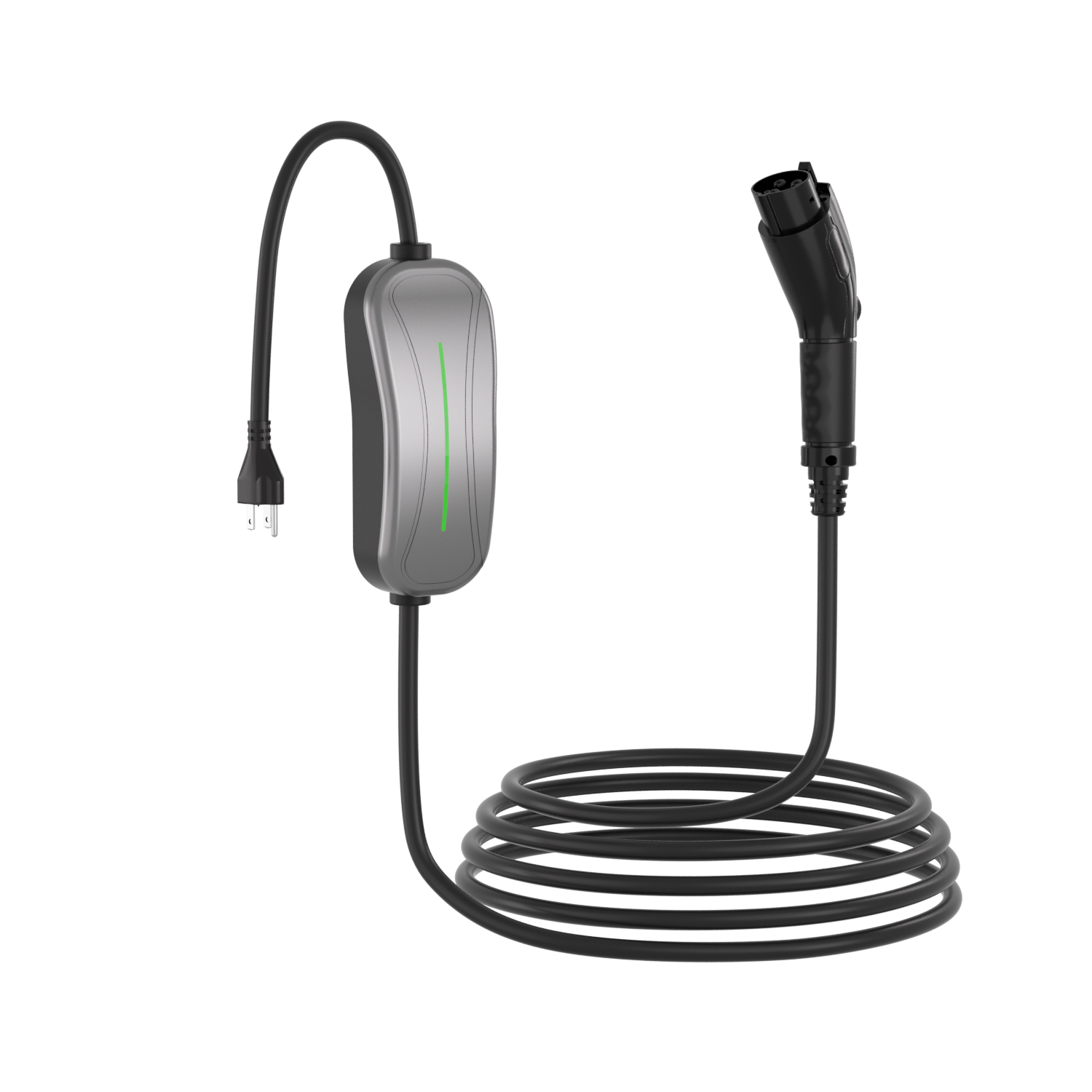

This is an on-board charger designed for electric vehicles. When the electric vehicle travels to a relatively remote area without public charging stations, this product can be conveniently used, as long as there is an electricity socket for charging.
| 1. Electrical Specifications | |
| • Power Rating: | 3.5 kW |
| • Operating Voltage: | 85-275V |
| • Current Rating: | 16A |
| • Frequency: | 50HZ,60Hz; |
| • Energy Efficiency: | ≥ 99% |
| • Socket or Connector Type: | Type 2/Type 1/GB/T / NACS |
| • Vehicle Compatibility: | Applicable to all electric vehicles (electric and hybrid) that comply with IEC standards |
| 2. Charging Modes | |
| • Charging Modes: | Mode 2: Complies with IEC 62752 standard and supports intelligent charging control |
| • Charging Speed: | 3.5 kW/h |
| • Dynamic Charging Profile: | N/A |
| 3. Functions and Features | |
| • Connectivity: | plug and play |
| • Smart Management: | Adjustable Current, Scheduled Charging |
| • Security: | Overcurrent protection, overvoltage protection, leakage protection, lightning protection, undervoltage protection, short circuit protection, flame retardant, waterproof, dustproof, and anti-collision,surge protection |
| • Energy Consumption Measurement: | Real-time monitoring |
| • Authentication: | N/A |
| • Additional Features: | Adjustable Current, Scheduled Charging |
| 4. Mechanical Specifications | |
| • Dimensions: | 185x52x80mm |
| • Weight: | 1.8kg |
| • Housing Material: | PC |
| • Ingress Protection (IP): | IP65 |
| • Impact Rating (IK): | IK08 |
| 5. Operating Environment | |
| • Operating Temperature: | -22℉ to 122℉ |
| • Relative Humidity: | 5%-90% |
| • Maximum Operating Altitude: | 2000m |
| • Mounting Method: | Wall-mounted / portable |
| 6. Certifications and Compliance | |
| • Safety Standards: | CE-LVD,CE-EMC,CE-ROHS,CE-REACH,CE-ERP,UKCA |
| • Regional Certifications: | GB/T202341/2-2015、GB/T184871-2015 SAE J1772:UL2251、UL2594 IEC62196-1/2、EC 62752、IEC 61851 |
| • Network Compatibility: | N/A |
| 7. Installation requirements | |
| • Mounting type: | Wall-mounted / portable |
| • Electrical input requirements: | AC 220V |
| • Recommended installation space: | ≥1200mm |
| • Required cables: | ≥3X4mm² |
| 8. Warranty and support | |
| • Warranty: | 2 years |
| • Support services: | 7×24 hours technical support（tell、Email），remote debugging |
